Impinj R420 RFID Reader
Original price was: $2,183.00.$1,899.00Current price is: $1,899.00. + Tax
Adapter not included.
Available on backorder

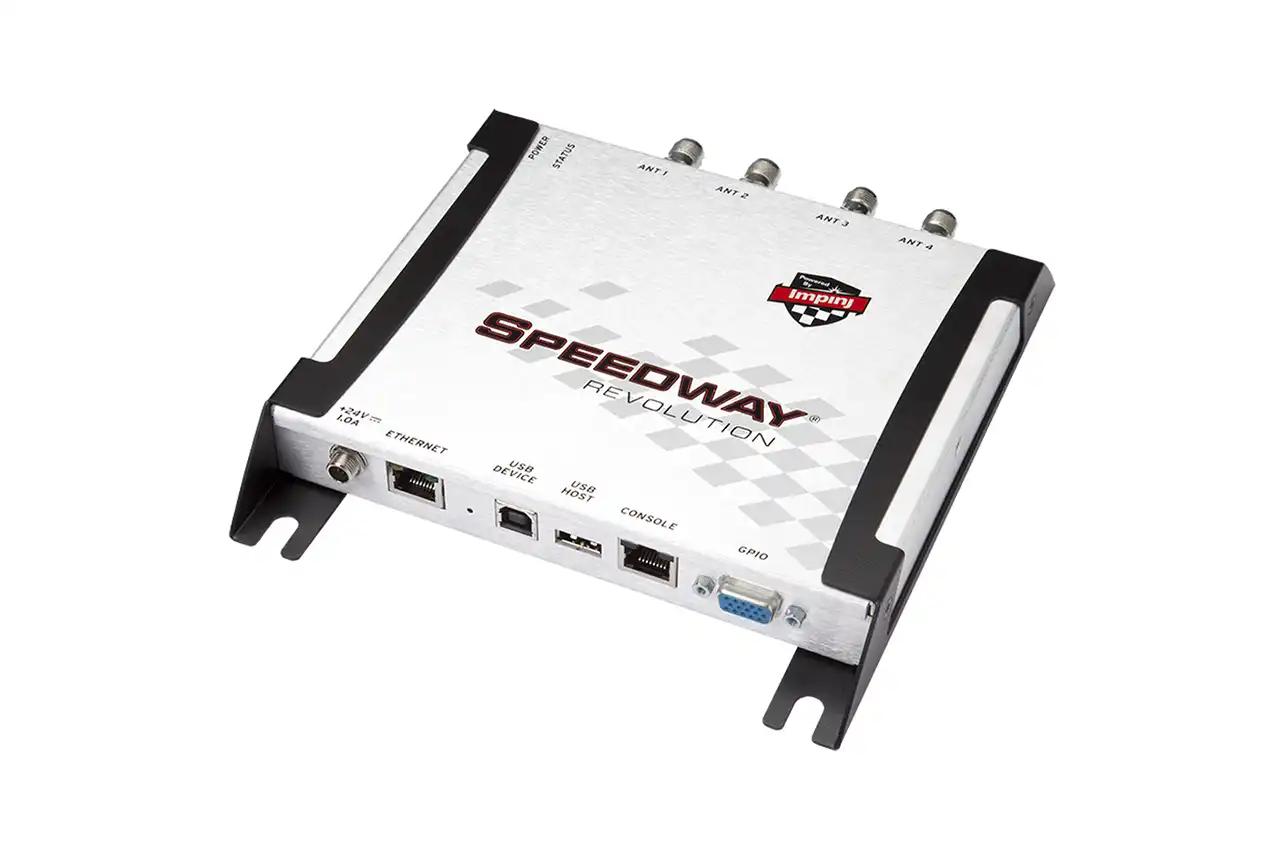

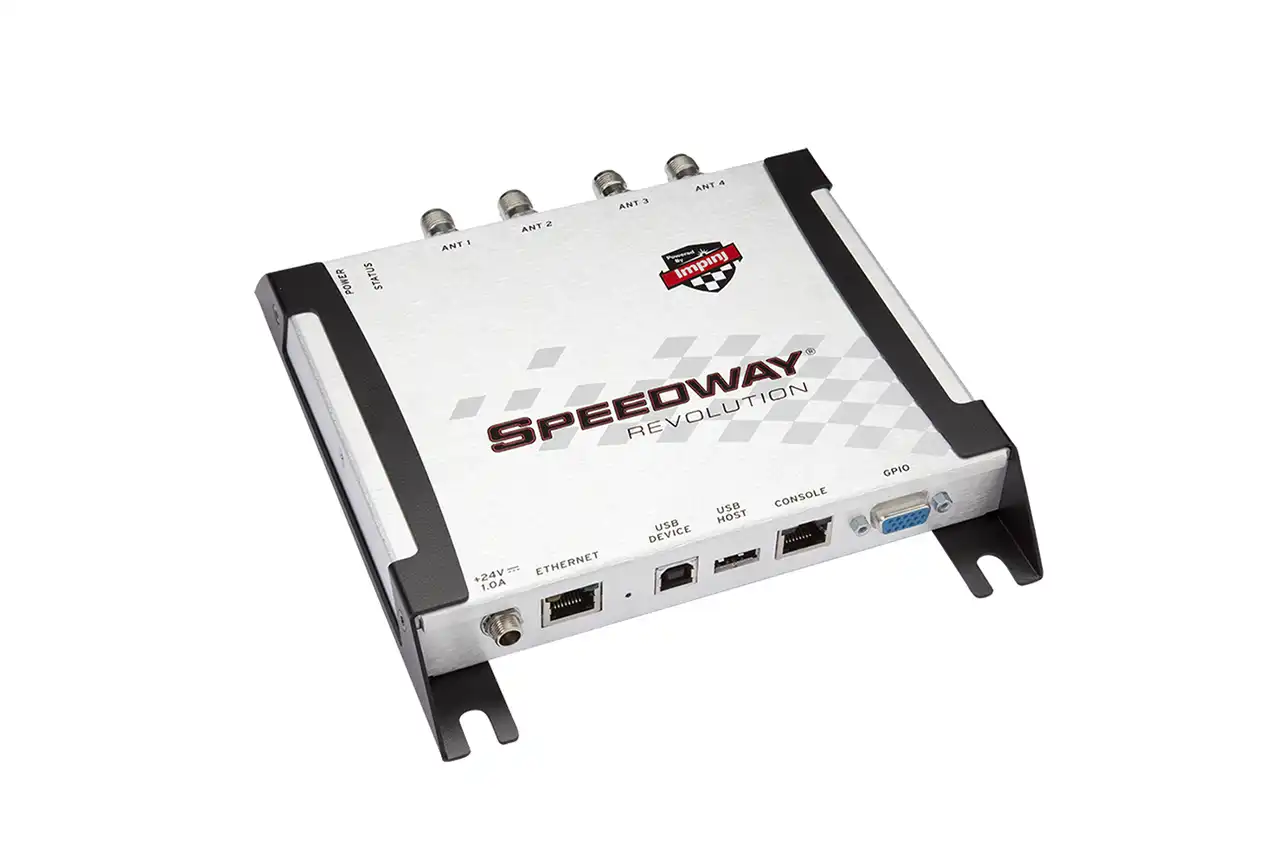

Impinj R420 RFID Reader
Impinj’s record-breaking Impinj Speedway Revolution R420 UHF RFID Reader has 4 ports and can be used easily in almost every industry.Speedway Revolution 420 UHF RFID Reader, which has the EPCglobal UHF Gen2 standard, can maintain high reading speeds without being affected by auto-adaptive and RF noise. It shows high performance especially in the identification of RFID tags with fast passage such as doors and conveyors. It facilitates the commissioning and project development processes of solution partners with its LLRP and PoE features.
This reader with Autopilot automatically adjusts its operation according to its environment and always shows the highest performance. You can contact us for the 2-port version.
If you need assistance selecting the appropriate RFID Reader for your needs, please contact us.
Data Sheet — Impinj R420 UHF RFID Reader
Quick Start Guide — Impinj R420 UHF RFID Reader
| MANUFACTURER | |
|---|---|
| WEIGHT |
0.7 kg (1.5 lbs) |
| OPERATING FREQUENCY |
EU1: 865-868 MHz EU2: 915-921 MHz |
| TRANSMIT POWER |
(PoE): +10.0 to +31.5 dBm (EU1 limited to +30 dBm)' (External DC Power):+10.0 to +32.5 dBm (Listed/Certified power supply) (EU1 limited to +31.5 dBm, JP2 limited to 30 dBm) |
| MAX RECEIVE SENSITIVITY |
-84 dBm |
| MAX READ RATE |
Up to 1,100 reads per second |
| DATA INTERFACE |
RS-232, ethernet |
| GPIO |
4 GPI optically isolated 3-30V/ 4 GPO optically isolated, 0-30V, non-isolated 5V, 100mA supply (DB-15) |
| POWER SOURCES |
AC-DC power supply: all models IEEE 802.3af PoE: all models except EU2 IEEE 802.3at PoE+: EU2 model |
| ANTENNA PORT |
4 RP-TNC Female Ports (connects to RP-TNC male), expandable to 32 antennas with Impinj Speedway Antenna Hub |
| DIMENSIONS |
190.5 x 175.3 x 30.5 mm (7.5 x 6.9 x 1.2 in) |
| IP RATING |
IP 52 |
| OPERATING TEMPERATURE |
-20 ºC to +50 ºC (-4 ºF to +122 ºF) |
| HOST API |
Java, .NET |
| DEMO SOFTWARE |
Impinj ItemTest Software |
| AIR INTERFACE PROTOCOL |
GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
