Hopeland Shine 340 RFID Reader

(2 customer reviews)

Ask for More Info
Description

Hopeland Shine 340 RFID Reader

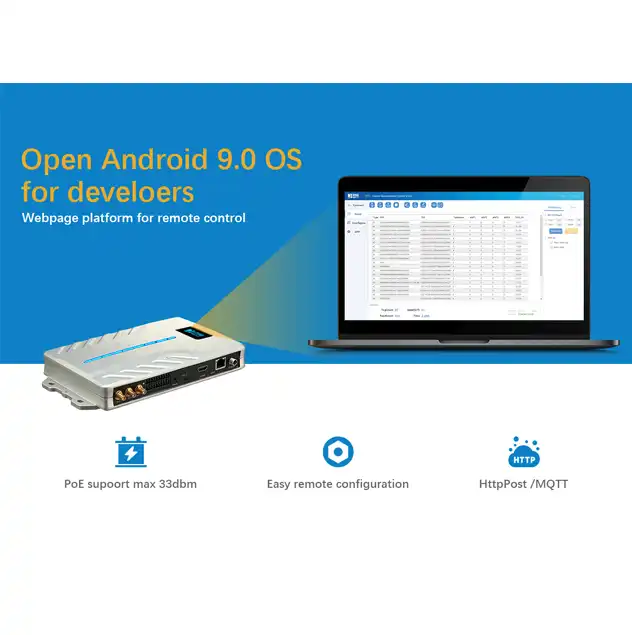

Hopeland’s newest product, Hopeland Shine 340 RFID Reader with Impinj R2000 chip, is based on Android 9.0 operating system. In this way, with the Shine 340, which has an endless development opportunity, RFID developers can develop dozens of different applications embedded. With this product, which is the result of the combination of the reliable structure of the Sharp 340 series and the new generation Android operating system, you can develop most of your software layers on the reader and make a difference with your embedded applications.

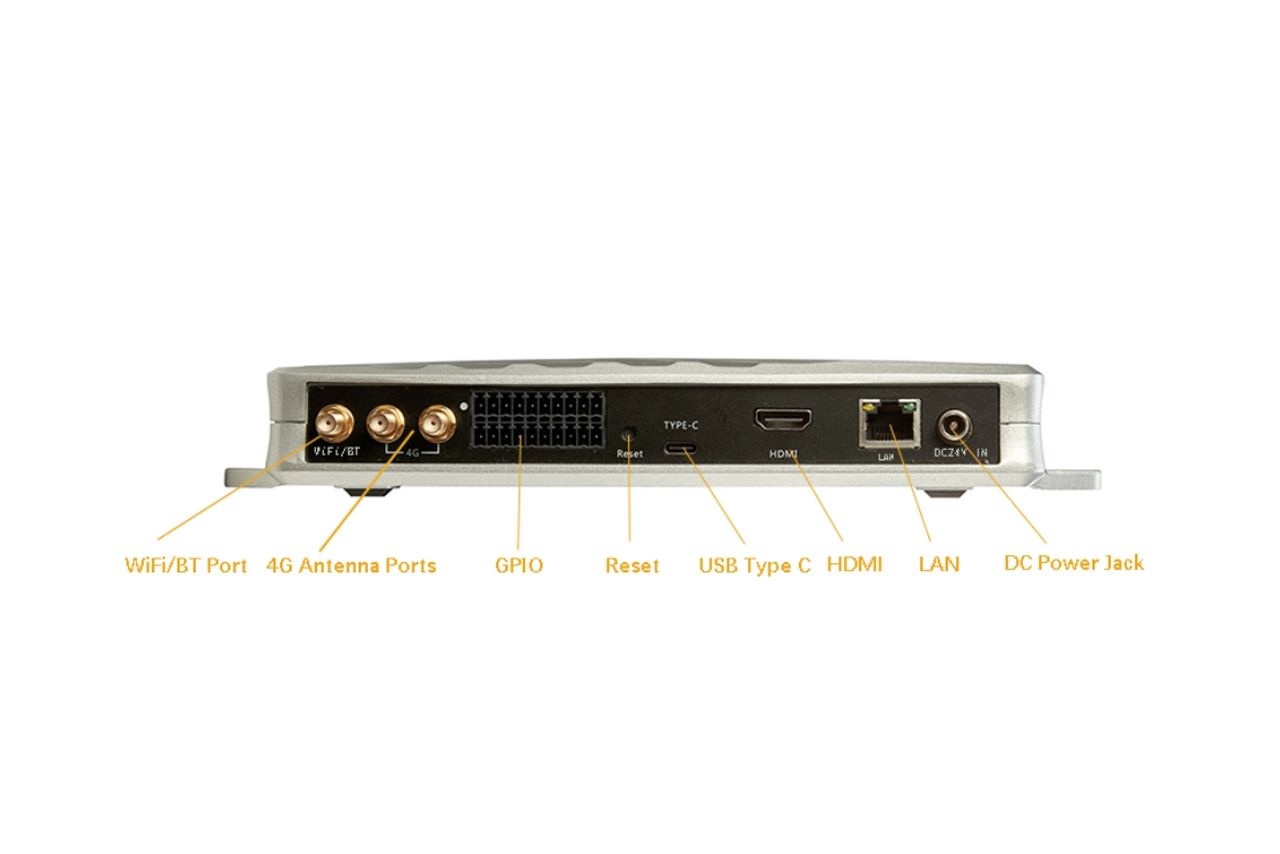

This reader, which can be ordered with 4 or 8 ports, and has RJ45, RS485, Wiegand, USB, Bluetooth, 4G communication interfaces, supports offline operation for 40,000 tags. It is an industrial alternative that can work for many years without any problems with its metal casing.

If you need assistance selecting the appropriate RFID Reader for your needs, please contact us.

Data Sheet — Hopeland Shine 340 RFID Reader

Additional information
MANUFACTURER

AIR INTERFACE PROTOCOL

EPC C1Gen2 C2GEN2 optional (ISO/IEC18000-6B, 6C)

OPERATING FREQUENCY

CHN:920MHz~925MHz (CMII) USA: 902 MHz-928MHz (FCC part 15) EU: 865-868MHz (ETSI EN 302208)

TRANSMIT POWER

+35dBm

DATA INTERFACE

RJ45, RS-485, OTG, Wiegand WiFi : 802.11 a/b/g/n/ac 4G: LTE-FDD(CAT-7)/LTE-TDD(CAT-7)/WCDMA/TD-SCDMA/ EVDO/CDMA/GSM Bluetooth:BT v2.1+EDR,3.0+HS,v4.1+HS

GPIO

4 inputs(DC 0~24V), 4 outputs(DC_MAX:30V,2A; AC_MAX:125V,0.3A), optically isolated (Terminal Block)

POWER SOURCES

DC 24V/2.5A (DC 9V ~ 30V,60W) or PoE(IEEE 802.3 af/at/bt)

ANTENNA PORT

4/8 Reverse Polarity TNC ports; circular or linear polarization; near and far field compatible

DIMENSIONS

241 × 132 × 36mm

IP RATING

IP 53

WEIGHT

1.2 Kg

HOST API

Android platform – Java Linux platform – Java SDK

OPERATING TEMPERATURE

-20 – +70°C
