Vuzix M4000 Smart Glasses
First smart glasses with a corporate emphasis that utilise the ground-breaking Vuzix waveguide. Transparent heads-up display, crystal-clear, expert-caliber streaming. Wearable all-day form factor that is lightweight and comfy. Multiple input methods including a swiping pad, voice control, and buttons.
VUZIX M4000
Product #: 490T00011

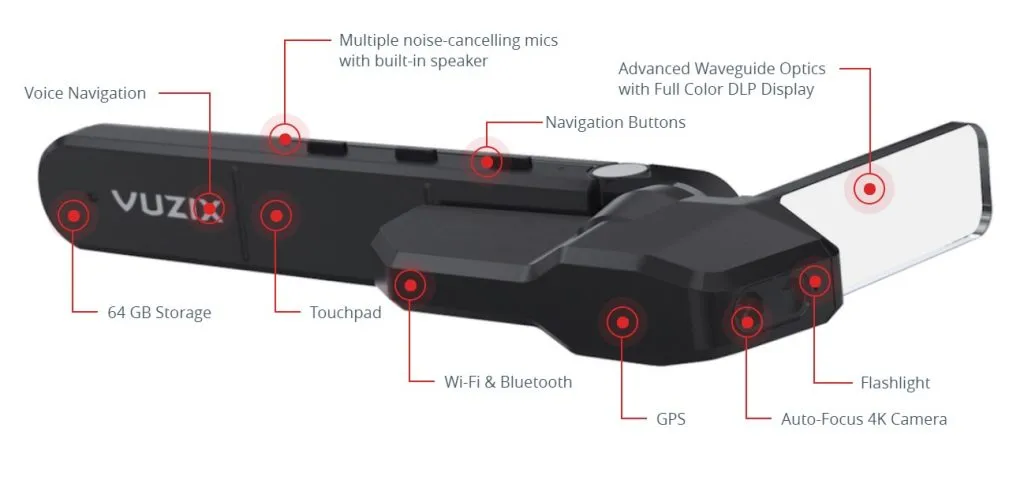

- First enterprise-focused smart glasses using revolutionary Vuzix waveguide
- See-through heads-up display for total situational awareness
- High performance Qualcomm XR1 processor
- Long-life hot swapable batteries for zero downtime
- Voice control in multiple languages
- Left or right eye use with a variety of mounting options
Longevity Series
IP67 rated against dust and water, and ruggedized for any conditions, this kit is ideal for total, unobstructed situational awareness. M4000 smart glasses, 750 mAh IP67 certified USB-C battery with 3-level LED indicator, safety frames, headband, tinted window accessory, replacement waveguide instructions, pelican case, user manual, mounting guide, and one-year manufacturer’s warranty are included.
Extended Series
Ready for indoor or standard condition outdoor use, this kit is ideal for comfortable, long-hours AR assisted medical or industrial service. M4000 smart glasses, 4800 mAh USB-C power bank (not IP67 certified), safety frames, headband, small power cable A-C, tinted window accessory, waveguide replacement instructions, pelican case, user manual, mounting guide, and one-year manufacturer’s warranty are included.
Ruggedized and Drop Tested to 1 Meters
IEC 60601 Medical Use Ratings
IP67 Dust and Water Protection
LIGHTWEIGHT COMFORT MEETS GAME CHANGING OPTICS
Welcome to the next step in augmented reality (AR) technology.
The Vuzix M4000 is an all-in-one enterprise AR solution that combines a revolutionary mix of optics, processing performance, and lightweight ergonomics.
When it comes to the Vuzix M4000 vs the M400, a key difference is the ultra-bright, see-through waveguide optics on the M4000 smart glasses.
TECHNICAL SPECIFICATIONS
Optics
- See-through waveguide optics
- Display resolution: WVGA color display 854×480
- Display type: DLP
- Aspect ratio: 16:9
- Field of view (diagonal): 28°, equivalent to a 9” mobile device screen seen at 18”
- Brightness: 5000 nits
- Contrast: > see through 1000:1
- 24-bit color
- Supports left or right eye use
Battery
- 135 mAh internal battery supports hot swapping of external batteries
- 750 mAh IP67 certified USB-C battery with 3-level LED indicator (All Weather Kit) or an extended life 4800 mAh USB-C power bank (Extended Wear Kit)
- Can be powered by 3rd-party USB battery packs in place of head-worn battery
- 2–12 hours of operation based on external battery choice
Head Tracking
- 3-degree of freedom head tracking
- 3 axis gyro
- 3 axis accelerometer
- 3 axis mag/integrated compass
GPS
- GPS / GLONASS
General
- 8 Core 2.52Ghz Qualcomm XR1
- 6GB LPDDR4 System RAM
- 64GB internal flash memory
- Android 11.0 OS
- OS and apps OTA upgradeable
- MDM available from multiple partners
Controls
- 3 control buttons
- Voice control is customizable and supports multiple languages
- 2 axis touchpad with multi-finger support
Environment
- Operating temperature -20ºC to 45ºC/-4ºF to 113ºF
- Operating humidity 0-95% RH
- Storage temperature 10-45ºC
- Storage humidity 0-95% RH
Certifications
- IP67 Rated (All Weather Kit)
- Drop safe to 1 meter
- IEC60601-1-2:2014 Medical Device
- Download Medical Certification
Audio
- Integrated speaker (up to 97db output)
- Triple noise-cancelling microphones
- BT audio: HSP/A2DP
Mountain options
- Vuzix M-Series Rail Eyeglass frames without lens (standard)
- Viewer weighs less than 3.5 oz
- Eyeglass frames with lens
- Safety glasses
- Hard hat mount
- Headband (Standard)
- Peltor headphone mount
Camera
- Up to 12.8-megapixel stills
- Up to 4k30fps video
- Improved auto-focus (PDAF)
- Improved optical image stabilization
- LED flash/scene illumination
- Barcode scanning
Connectivity
- USB 3.1 Gen 2 on USB Type-C
- Wi-Fi 2.4/5Ghz 802.11 a/b/g/n/ac
- Bluetooth 5.0 BR/EDR/LE
SUPPORTED LANGUAGES
- English
- Spanish
- French
- German
- Mandarin- Simplified Script
- Mandarin- Traditional Script
- Cantonese- Traditional Script
- Japanese
- Arabic
- Bulgarian
- Czech
- Danish
- Dutch
- Farsi
- Finnish
- Greek
- Hebrew
- Hindi
- Hungarian
- Italian
- Indonesian
- Korean
- Norwegian
- Polish
- Portuguese
- Russian
- Swedish
- Thai
- Turkish
