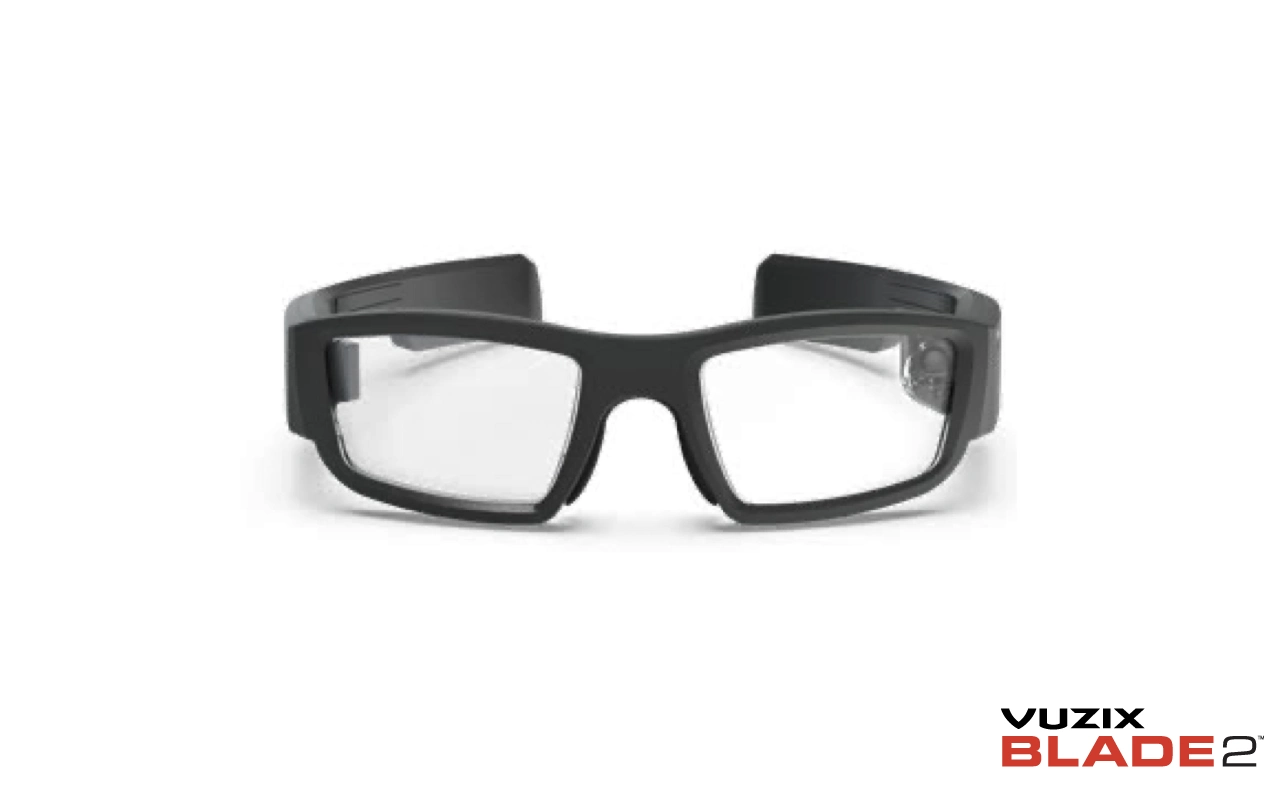

Vuzix Blade 2 Smart Glasses
Sophisticated waveguide projection technique in full color. ANSI Z87.1 safety certification and full UV protection lenses are included. Streaming video using an HD camera with autofocus. Integrated stereo speakers with noise-cancelling microphones in temples. Bluetooth and Wi-Fi 5.0 and 2.4 GHz wireless.
VUZIX BLADE 2™
Product #: 514T00011
- Advanced full-color waveguide projection technology
- Full UV protection lenses plus ANSI Z87.1 safety certification
- Streaming video with autofocus HD camera
- Integrated stereo speakers in temples with noise-cancelling mics
- 5.0 and 2.4GHz Wi-Fi and Bluetooth wireless
WHAT’S NEW IN VUZIX BLADE 2
- Android 11 OS to run the enterprise apps you depend on
- Integration with common MDM solutions for easier device management
- Increased security with integrated memory management
- Expanded WiFi capabilities for diverse workplace environments
PERFORMANCE AR SMART GLASSES FOR THE DESKLESS WORKFORCE
Our innovative Vuzix Blade 2™ smart glasses connect frontline workers with critical AR systems, enabling hands-free, heads-up access to data and remote expertise, all in a sleek, lightweight form factor.
Keep your eyes protected with an ANSI Z87.1 certification while maintaining focus on your work. Ultrabright waveguide optics merge digital instructions onto real-world tasks, removing distractions and vision occlusion, ultimately reducing error rates and making your connected workforce more effective.
COMFORT
A lightweight, ergonomic design and cushioned, snug fit equip the Vuzix Blade with all-day wear comfort.
DESIGN
The thin, unobtrusive design of Vuzix Blade transforms AR smart glasses with a sleek, fashion-forward look.
DISPLAY

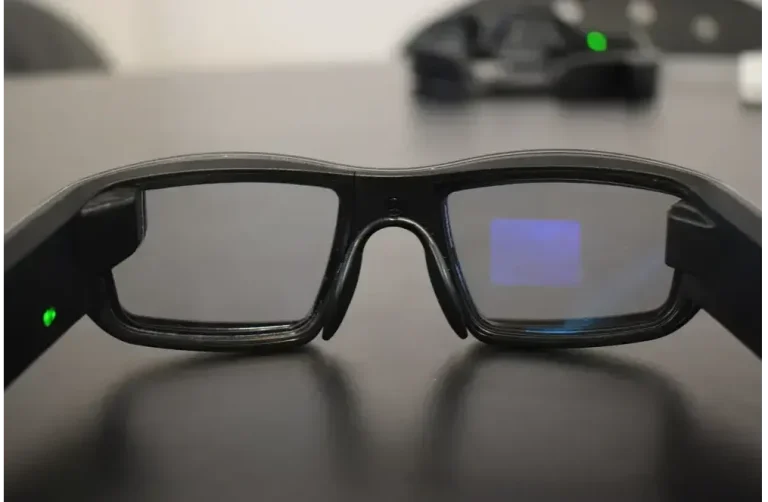

The waveguide display features a 480×853 resolution and transparent display in ultra-bright 24-bit color. Prescription inserts are available.
TECHNICAL SPECIFICATIONS
Optic
- Display resolution: 480×480 color display
- Display type: Wave Guide Projection Technology
- Aspect: 1:1 ratio
- Field of View (diagonal): 20 degrees, equivalent to a 6 in. mobile device held at arm’s length (17 inches)
- Brightness: > 2000 nits
- 24-bit color
- Right eye display
- Prescription inserts available
- All lenses UV protected
System
- Andriod 11 OS
- 40GB built-in memory
- Quad Core ARM CPU
- Internal LiPo rechargeable batteries
Environment
- Operating temperature 0ºC to 35ºC
- Operating humidity 0% to 95% RH
- Storage temperature -30ºC to 70ºC
- Storage humidity 0% to 95% RH
Integrated Head Tracker
- 3-degree of freedom head tracking
- 3 axis gyro
- 3 axis accelerometer
- 3 axis mag/integrated compass
Audio
- Integrated stereo in-temple speakers
- Dual noise-cancelling microphones
Controls
- Multilingual voice control capabilities
- 2-axis touchpad with multi-finger support
- Companion app for Android & iOS devices
Connectivity
- 5.0 and 2.4GHz WiFi and Bluetooth wireless
- USB 2.0 Micro-B
Certificates
- ANSI Z87.1 safety certification
- Full UV protection lenses
Camera
- 8-megapixel camera
- Auto-focus
- Streaming video
- Integrated barcode scanner
