Starting from $1.3392 + Tax
Available on backorder

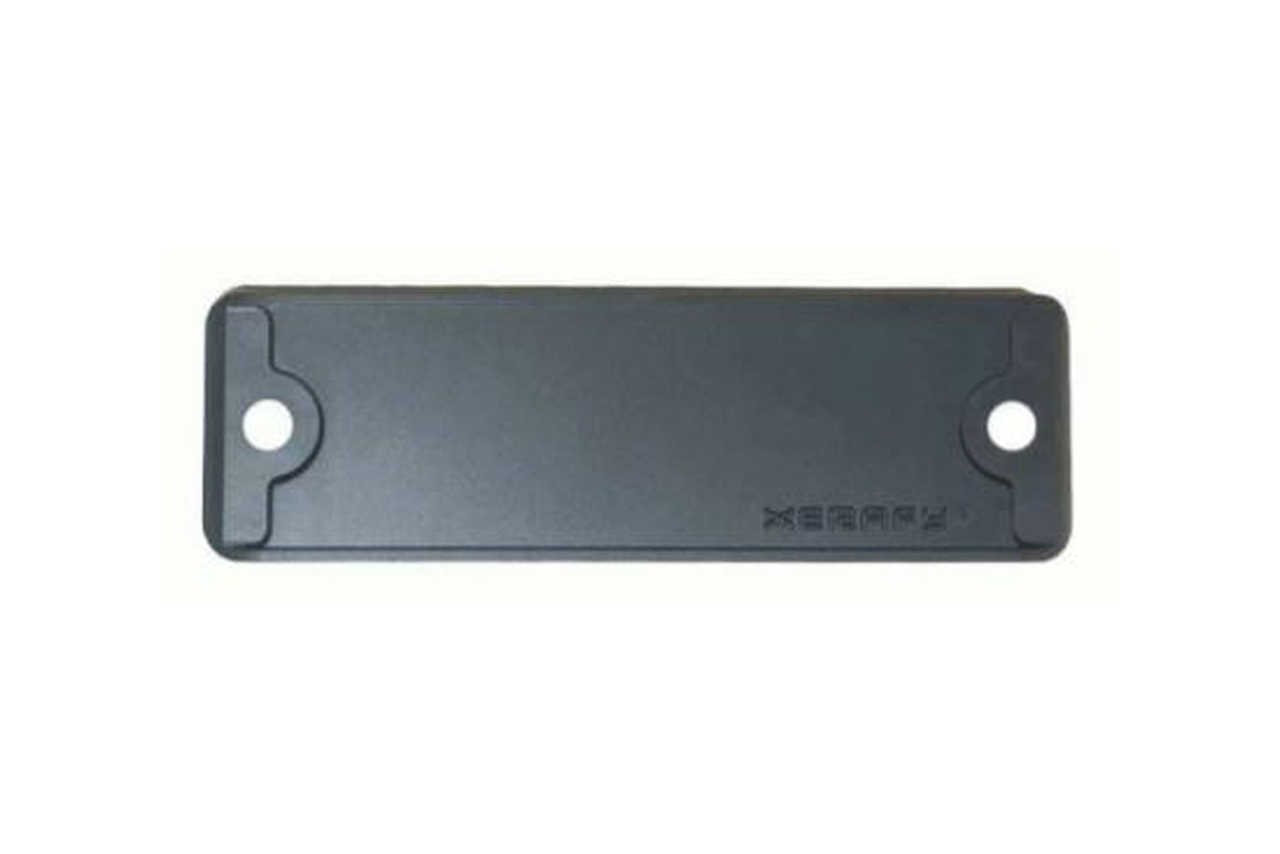

The Xerafy RTI Trak RFID Tag is a linearly polarized tag equipped with the Alien Higgs-3 IC chip. RTI tags can endure a 3 ft (1 m) drop test to concrete/granite for up to 200 cycles and are tuned for either the 902-928 MHz (US) or 866-868 MHz (EU) working frequencies.
| MANUFACTURER | |
|---|---|
| AIR INTERFACE PROTOCOL |
EPC global Class 1 Gen2 |
| OPERATING FREQUENCY |
902-928 MHz(US) 866-868 MHz(EU) |
| IC TYPE |
Alien Higgs-3 |
| MEMORY |
96 EPC bits, extendable to 480-bit, 512-bit user memory, 64-bit TID |
| MAX READ DISTANCE ON METAL |
Up to 26 ft (8 m) |
| MAX READ DISTANCE OFF METAL |
up to 13 ft (4 m) |
| ATTACHMENT METHOD |
Adhesive / Rivet hole, 0.14 in (3.5 mm); adhesive (optional) |
| OPERATING TEMPERATURE |
-40°F to +185°F (-40°C to +85°C) |
| IP RATING |
IP 68 |
| APPLICATION TEMPERATURE |
-40°F to +185°F (-40°C to +85°C) |
| DIMENSIONS |
2.88 x 0.9 x 0.33 in (73.3 x 22.8 x 8.3 mm) |
| WEIGHT |
0.39 oz (11 g) |
