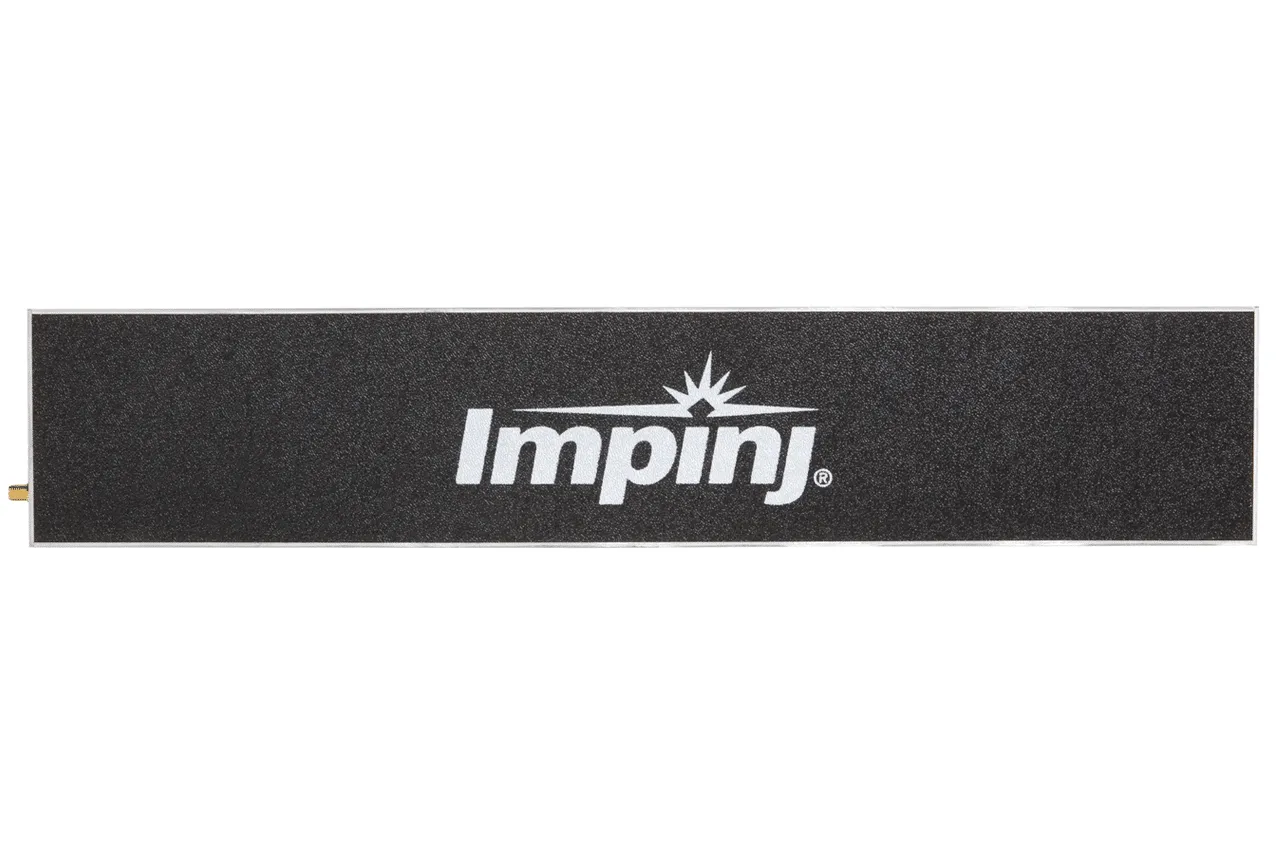

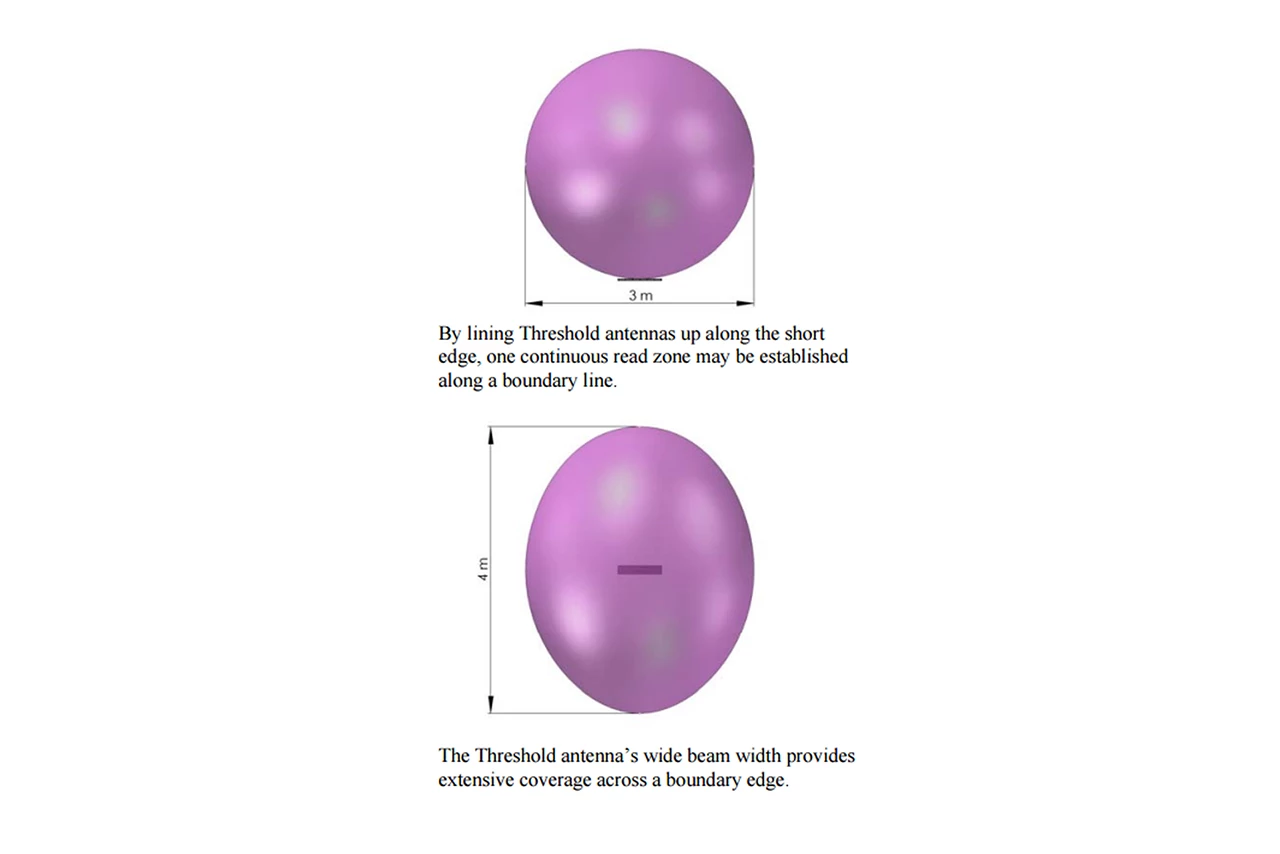

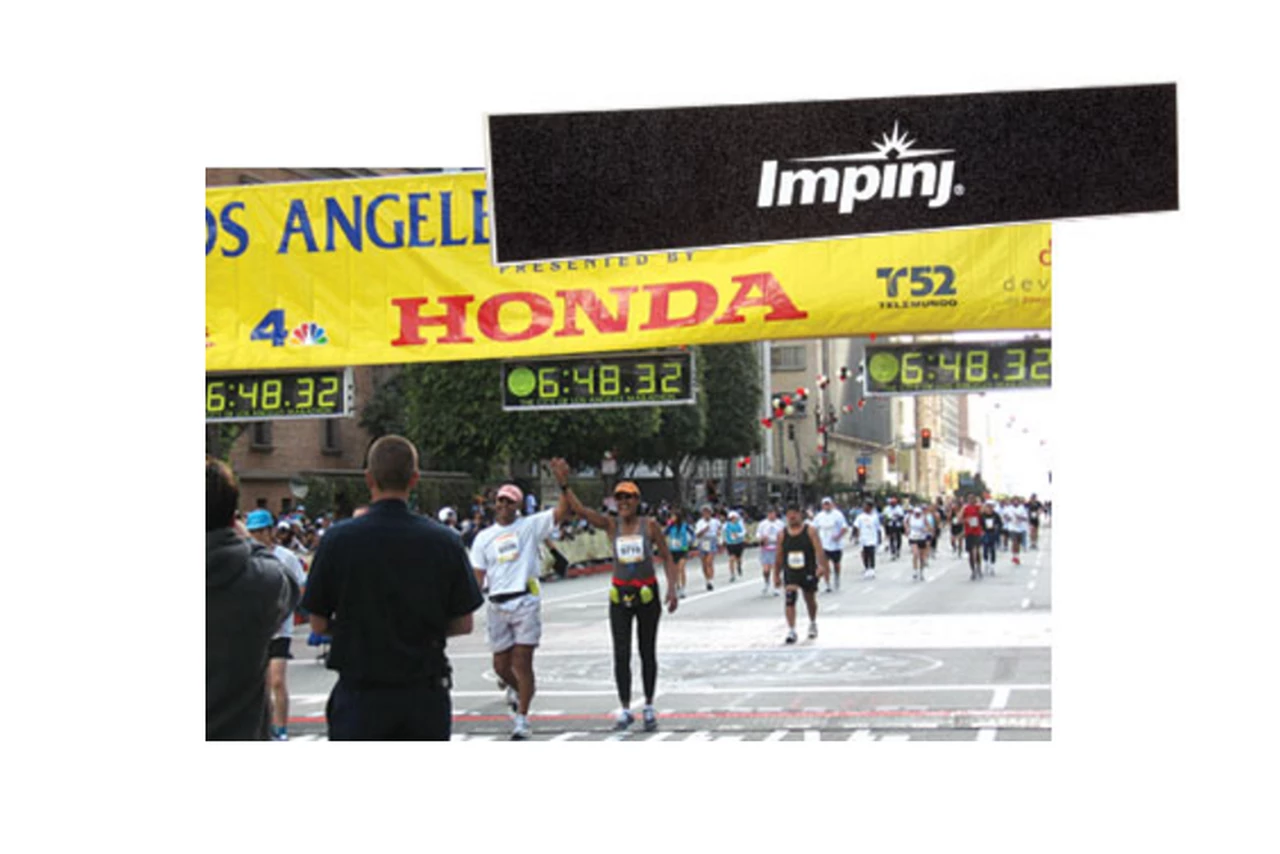

The Impinj Threshold antenna, which was originally designed for boundary/threshold crossing applications, has an extremely broad beam width to maximize zone coverage. When linearly distributed head-to-tail, threshold antennas provide a consistent and continuous read zone. The Threshold antenna’s planar form factor fits easily onto fencing or other borders, measuring 46 x 9 x 2 cm.
| MANUFACTURER | |
|---|---|
| OPERATING FREQUENCY |
FCC (902-928 MHz), ETSI (865-868 MHz) |
| POLARIZATION |
Linear |
| GAIN |
5.0 dBi |
| VSWR |
FCC: 2:1 ETSI: 1.5:1 |
| ELEVATION BEAMWIDTH |
120°± 3° (US), 100± 3° (EU) |
| AZIMUTH BEAMWIDTH |
60°± 3° (US), 50± 3° (EU) |
| CONNECTOR TYPE |
2 SMA female (connects to SMA male) |
| CABLE |
2 m (6.6 ft) antenna cable (LMR-195, RP-TNC Male to SMA Male) |
| MOUNTING |
_ |
| DIMENSIONS |

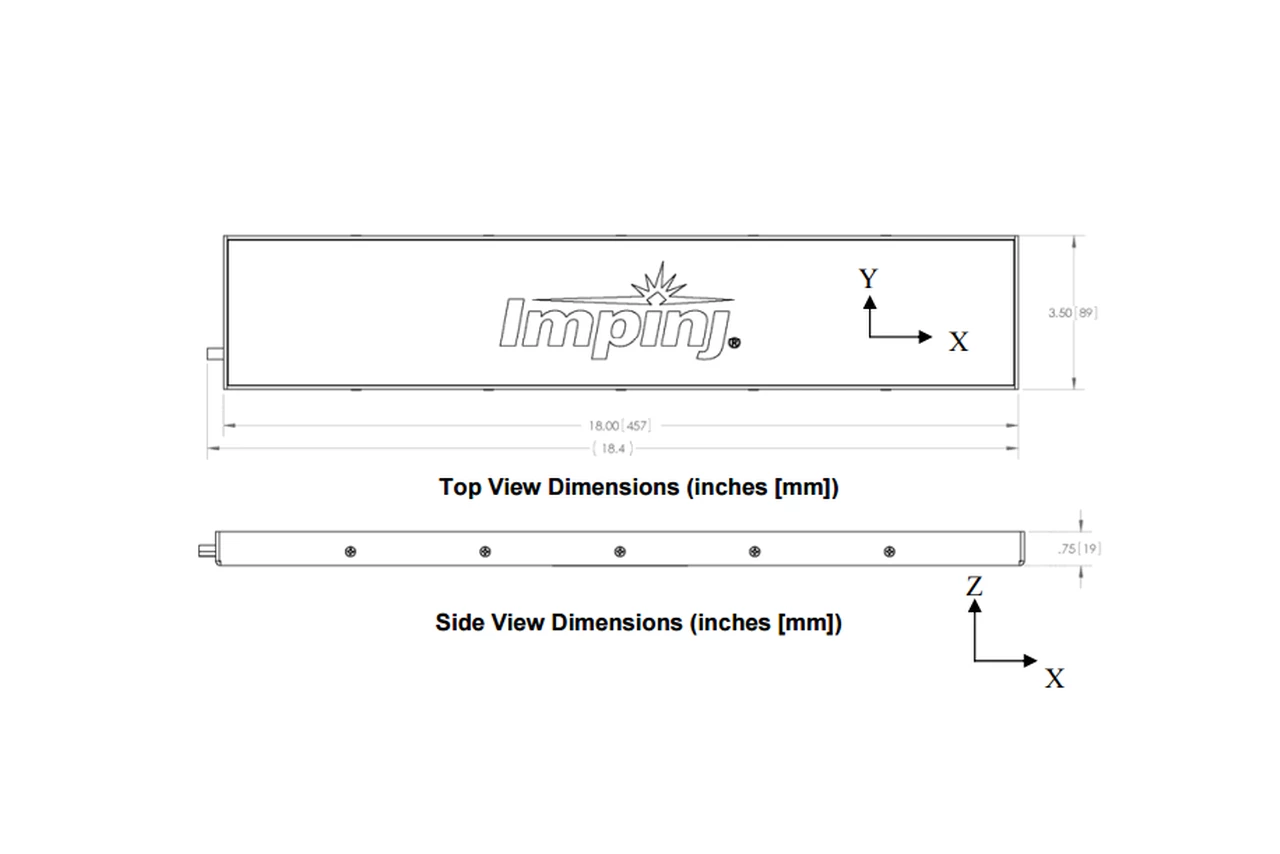

457 x 89 x 19 mm (17.99 x 3.50 x .75 in) |
| WEIGHT |
0.68 kg (1.5 lbs) |
| IP RATING |
IP 54 |
| OPERATING TEMPERATURE |
-25° to 55°C (-13° to 131°F) |
