Vuzix M400 Smart Glasses
First smart glasses with a dedicated XR1 platform. Wearable, lightweight, comfortable outfit all day. Enables instantaneous, uninterrupted hot battery swapping increased RAM, storage, and computing capacity. Improved resolution and scanning capabilities for the camera and OLED panel. User interface with built-in motion tracking and voice processing.
VUZIX M400
Product #: 472T00011

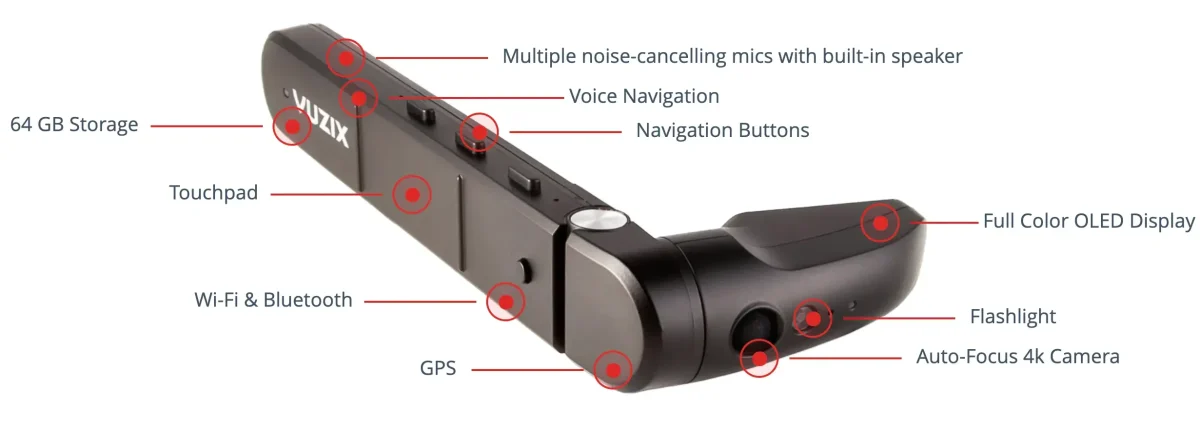

- The lightest, most comfortable smart glasses specifically designed for all day wear
- Expansive OLED panel display and auto-focus camera with built-in scanner
- High performance Qualcomm XR1 processor
- Long-life hot swapable batteries for zero downtime
- Voice control in multiple languages
- Left or right eye use with a variety of mounting options
Longevity Series
M4000 smart glasses, 750 mAh IP67 certified USB-C battery with 3-level LED indicator, safety frames, headband, tinted window accessory, replacement waveguide instructions, pelican case, user manual, mounting guide, and one-year manufacturer’s warranty are included.
Extended Series
M4000 smart glasses, 4800 mAh USB-C power bank (not IP67 certified), safety frames, headband, small power cable A-C, tinted window accessory, waveguide replacement instructions, pelican case, user manual, mounting guide, and one-year manufacturer’s warranty are included.
Ruggedized and Drop Tested to 2 Meters
IEC 60601 Medical Use Ratings
ISO 14644-1 Cleanroom Rating
IP67 Dust and Water Protection
THE WORLD'S MOST POWERFUL SMART GLASSES
Lightweight and durable, Vuzix M400 smart glasses are the most wearable, powerful, and ergonomically versatile headworn computer on the market.
TECHNICAL SPECIFICATIONS
Optics
- Display resolution: nHD color display
- Display type: OLED
- Aspect ratio: 16:9
- Field of view (diagonal): 16.8°, equivalent to a 5 in. mobile device screen seen at 17 inches
- Brightness: > 2000 nits
- Contrast: > 10,000:1
- 24-bit color with true black
- Supports left or right eye use
Battery
- 135mAh internal battery supports hot swapping of external batteries
- 750 mAh IP67 certified USB-C battery with 3-level LED indicator (All Weather Kit) or an extended life 4800 mAh USB-C power bank (Extended Wear Kit)
- Can be powered by 3rd-party USB battery packs in place of head-worn battery
- 2–12 hours of operation based on external battery choice
Head Tracking
- 3-degree of freedom head tracking
- 3 axis gyro
- 3 axis accelerometer
- 3 axis mag/integrated compass
GPS
- GPS / GLONASS
General
- 8 Core 2.52Ghz Qualcomm XR1
- 6GB LPDDR4 RAM
- 64GB internal flash memory
- Android 11.0 OS
- OS and apps OTA upgradeable
- MDM available from multiple partners
Controls
- 3 control buttons
- Voice control is customizable and supports multiple languages
- 2 axis touchpad with multi-finger support
Environment
- Operating temperature -20ºC to 45ºC/-4ºF to 113ºF
- Operating humidity 0-95% RH
- Storage temperature 10-45ºC
- Storage humidity 0-95% RH
Certifications
- IP67 Rated (All Weather Kit)
- Drop safe to 2 meters
- IEC60601-1-2:2014 Medical Device
- Download Medical Certification
- ISO 14644-1 Class 2 Cleanroom rating
Audio
- Integrated speaker (up to 97db output)
- Triple noise-canceling microphones
- BT audio: HSP/A2DP
Mounting options
- Vuzix M-Series Rail Eyeglass frames without lens (standard)
- Weighs less than 3 oz.
- Eyeglass frames with lens
- Safety glasses
- Hard hat mount
- Headband mount
- Peltor headphone mount
Camera
- Up to 12.8-megapixel stills
- Up to 4k30 video
- Improved auto-focus (PDAF)
- Improved optical image stabilization
- LED flash/scene illumination
- Barcode scanning
Connectivity
- USB 3.1 Gen 2 on USB Type-C
- Wi-Fi 2.4/5Ghz 802.11 a/b/g/n/ac
- Bluetooth 5.0 BR/EDR/LE
SUPPORTED LANGUAGES
- English
- Spanish
- French
- German
- Mandarin- Simplified Script
- Mandarin- Traditional Script
- Cantonese- Traditional Script
- Japanese
- Arabic
- Bulgarian
- Czech
- Danish
- Dutch
- Farsi
- Finnish
- Greek
- Hebrew
- Hindi
- Hungarian
- Italian
- Indonesian
- Korean
- Norwegian
- Polish
- Portuguese
- Russian
- Swedish
- Thai
- Turkish
